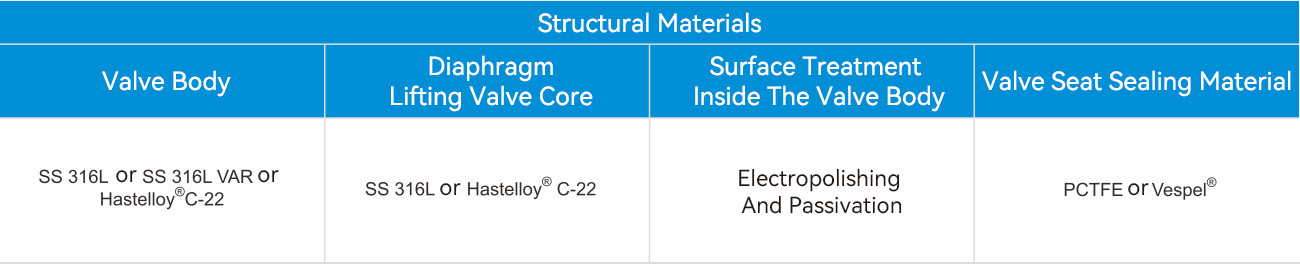

1. Valve body material: SS316LSS, 316L VAR;
2. Metal to metal diaphragm sealing;
3. Internal electrolytic polishing, with a smoothness of up to Ra 0.13 μm (5 μin.);
4. Small internal volume;

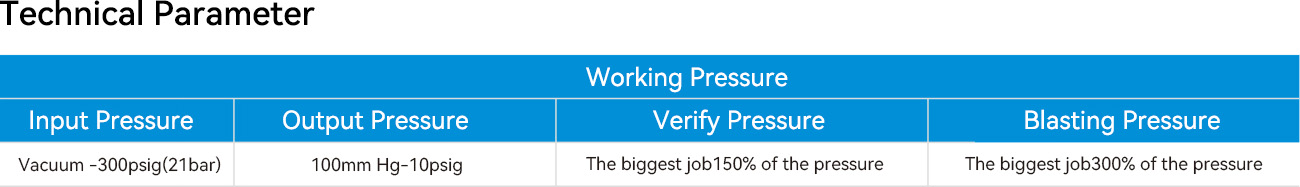

5. Maximum inlet pressure: 300PSI; Export pressure: 100mm Hg-10PSI;

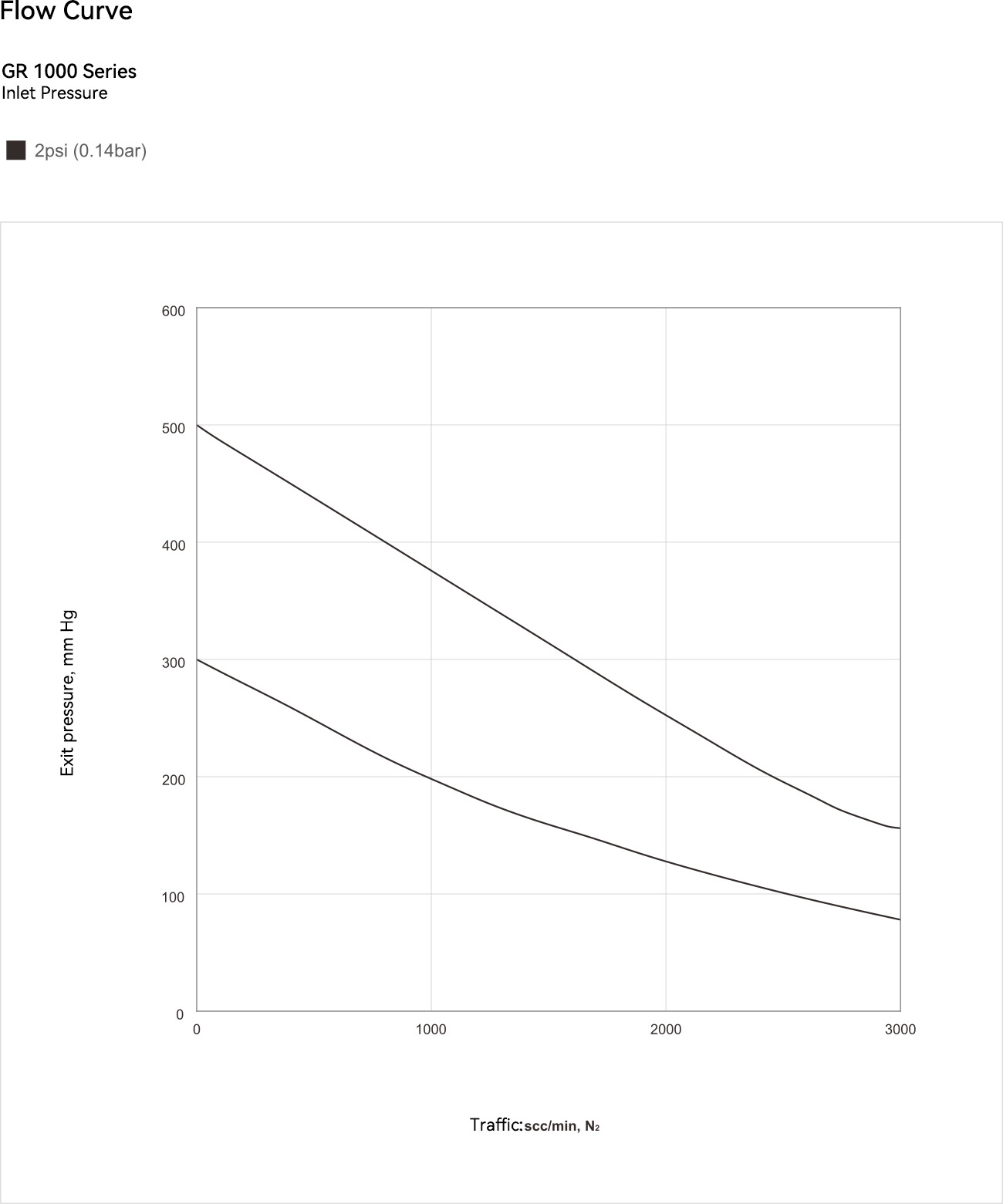

6. Maximum flow rate: 500 std cm ³/s;
7. High cleanliness assembly and packaging are suitable for the high-purity semiconductor industry;
8. Every product undergoes helium testing before leaving the factory.
CHINESE
Contact Us

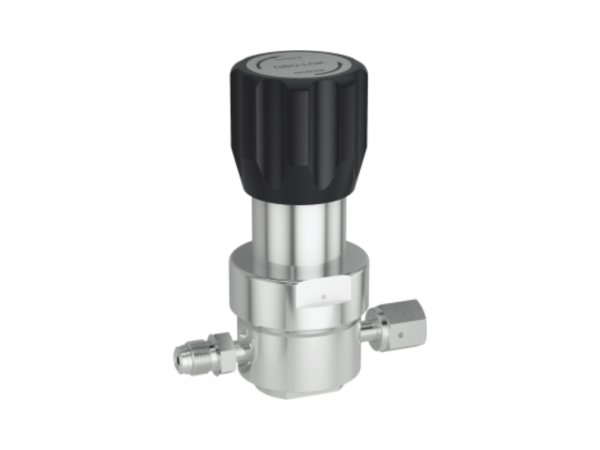

High purity pressure reducing valve
