Product Introduction

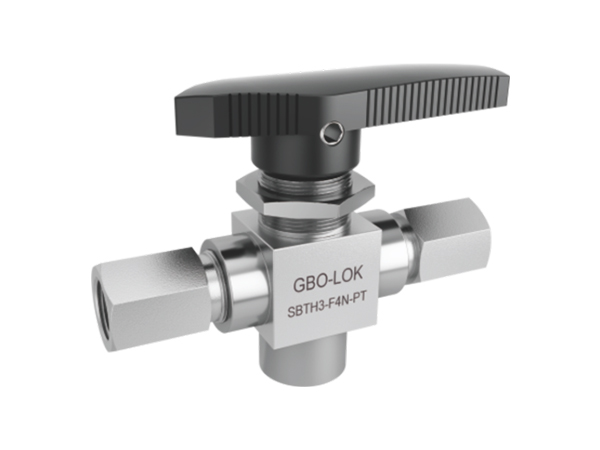

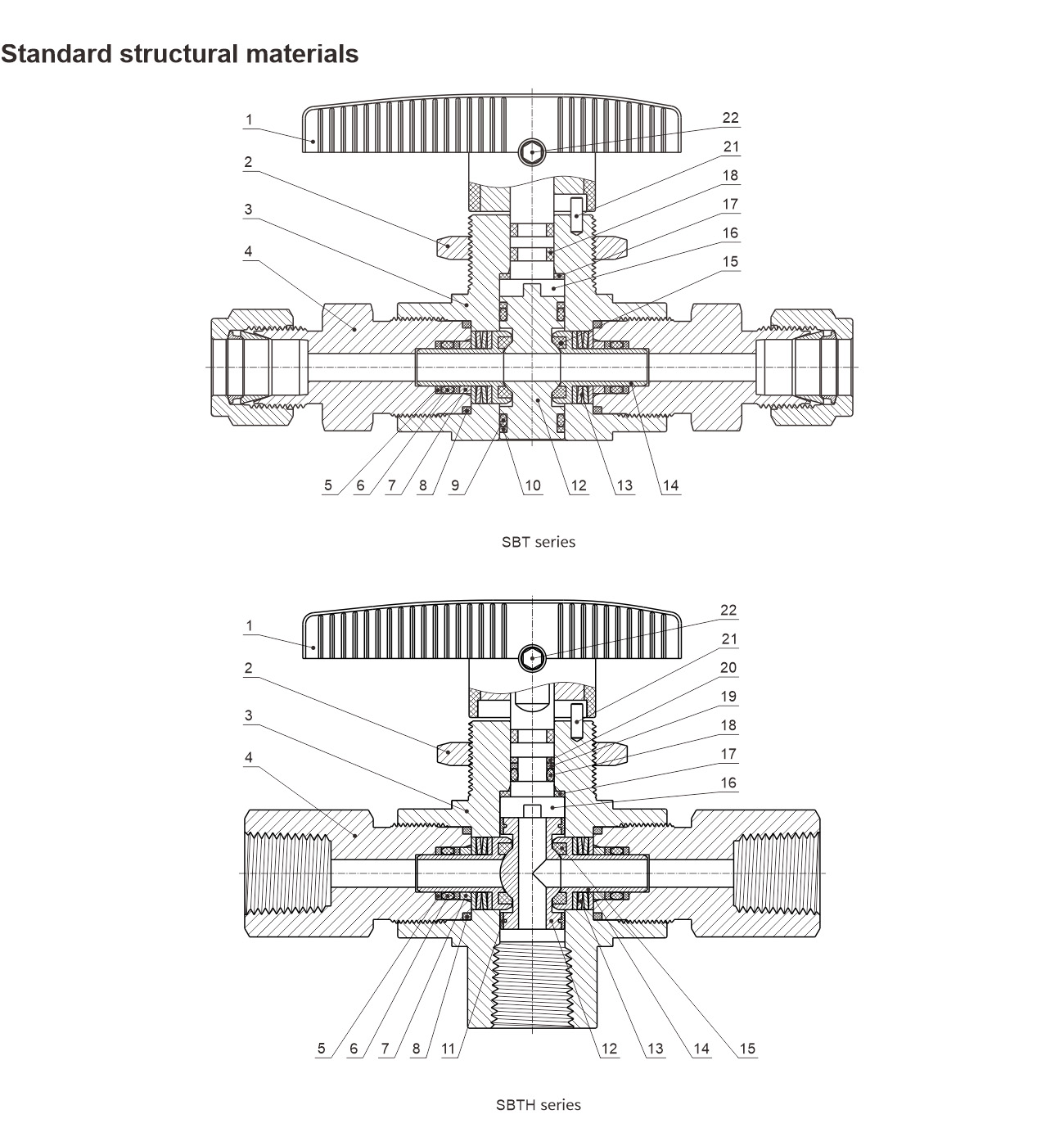

GBO-LOK high-pressure ball valve can provide reliable closing or switching function; The design of installing ear shaft bearings on the top and bottom effectively enhances the anti jamming performance of the ear shaft and increases the service life of the valve in extreme applications; Its compact and sturdy design, coupled with a spring-loaded valve seat, allows for high cycle life and low operating torque at pressures up to 10000 PSI (689 bar).


Test

1. Each valve undergoes nitrogen testing at a test pressure of 1000 PSI (69 bar) and a maximum leakage rate of 0.1 std cm³/ s;

2. Static pressure shell pressure test can be conducted at 1.5 times the maximum working pressure.

3. Optional tests can be provided upon request.
